WIND TURBINE TOWER TRAILER

This trailer is not only suitable for transporting wind turbine towers, but also capable of carrying various oversized large tank bodies, such as chemical industrial storage tanks and pressure vessels.

Against the backdrop of extensive promotion and large-scale deployment of wind power generation technology, SHIYUN, a top-tier flagship brand specializing in wind power haulage equipment, advances alongside industrial progress by constantly upgrading custom transporters for wind energy components.

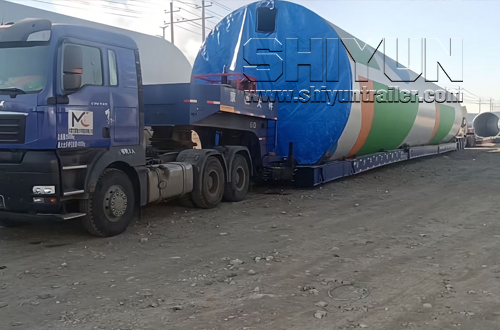

Wind turbine towers are generally tapered steel cylindrical structures that widen at the base and narrow toward the top, assembled segment by segment using flange connections. Given their towering dimensions and substantial dead weight, they must be hauled by heavy-duty low-bed semi-trailers or hydraulic modular transport vehicles. The large outer diameter of tower cylinders creates significant over-height oversized cargo issues, which represent a key obstacle for highway transit. Wind towers adopt a detachable modular design; they can be split into individual segments for separate delivery and reassembled on construction sites, which greatly cuts the empty backhaul expenses of transport fleets.

SHIYUN has specialized in wind power transportation solutions for two full decades, delivering all-round technical and equipment support for wind farm haulage projects. Persistent product iteration and technological breakthroughs have brought transformative improvements to our equipment performance, and our core product quality and comprehensive manufacturing capacity have ranked first within China’s domestic sector for over 20 consecutive years.

Moving forward, Shandong SHIYUN will stay focused on innovative R&D work, roll out iterative upgrades to dedicated wind power transport machinery, align product standards with world-class international benchmarks, and commit to manufacturing premium wind haulage vehicles. We aim to drive high-quality growth and global expansion for the entire wind power logistics industry.

Within wind energy logistics and haulage services, our enterprise offers full-spectrum transport solutions covering wind turbine nacelles, rotor blades and tower sections alike. We deliver one-stop, end-to-end logistics packages that span every link along the complete wind power industrial chain.

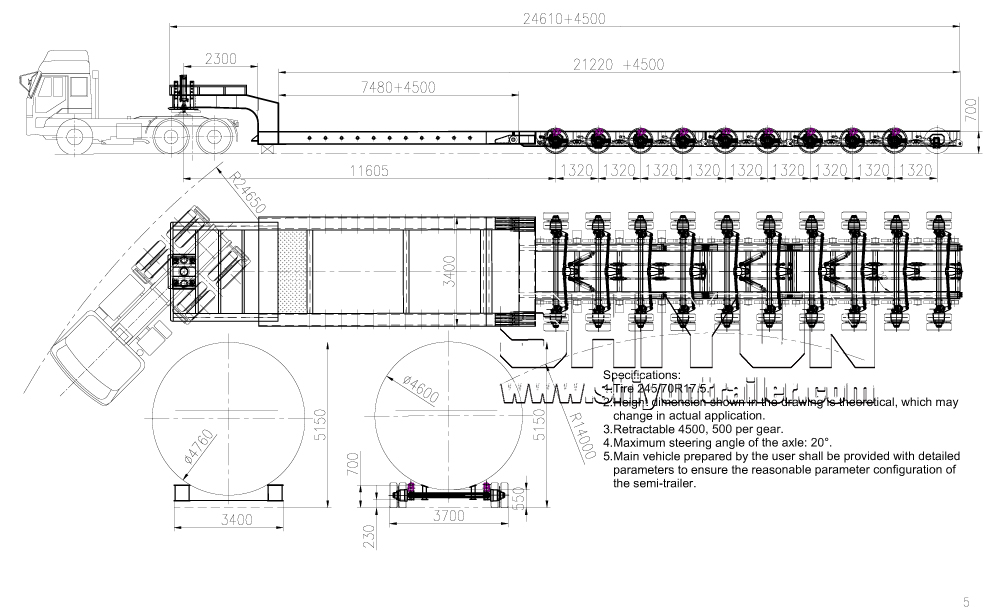

1. Wind tower lowbed trailer for sale:

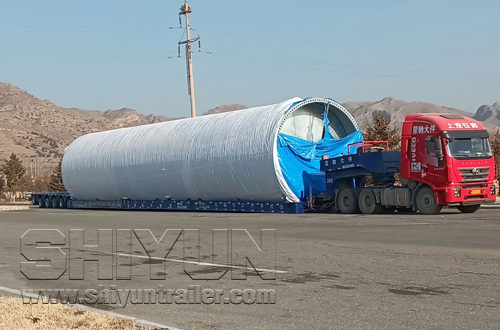

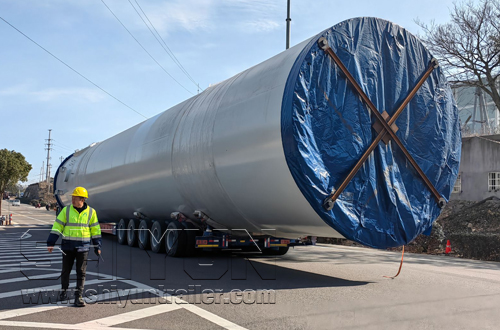

This long-haul telescope extendable trailer for wind rotor turbine tower transportation is equipped with through-type axles and a turntable hydraulic steering system.With outstanding heavy-load capacity, SHIYUN trailer is fully optimized for the long-haul transportation of large, heavy windmill turbine blades in complex mountainous regions.Equipped with flexible dimension tuning capability, it delivers universal compatibility with wind towers across a wide range of sizes and all mainstream brands.

Features:

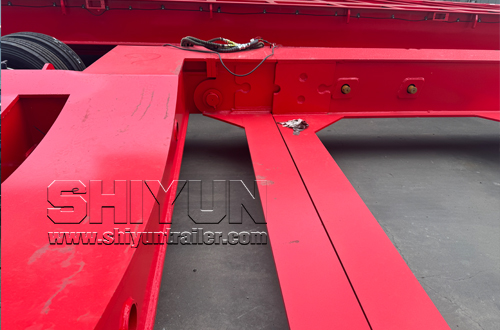

• The frame is made of high-strength steel such as HG60, Grade A steel and Q550 steel. It boasts excellent torsion resistance and fatigue resistance, free from deformation under long-term heavy load and collapse during telescopic operation.

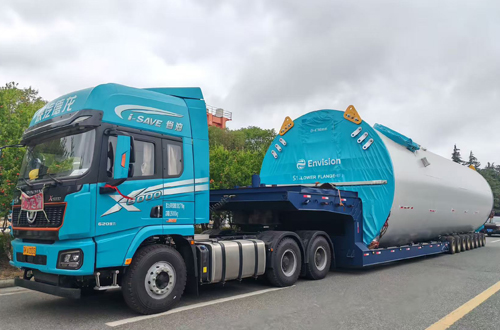

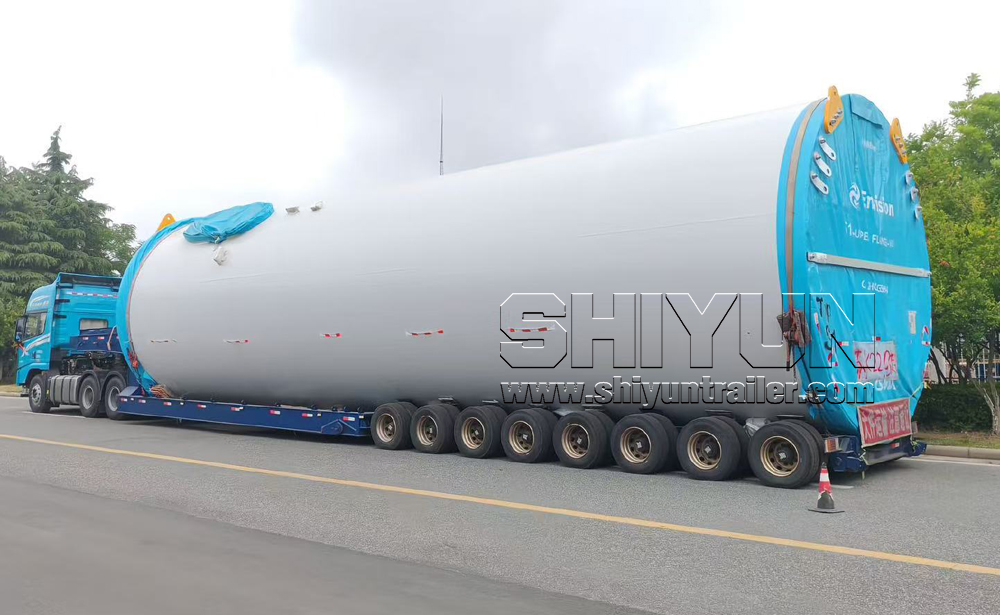

• Wind turbine tower transport vehicle is a special semi-trailer specially designed for transporting ultra-long, ultra-heavy and large-diameter wind turbine towers. It features a low saddle, multi-axle configuration, heavy-load capacity, optional hydraulic steering and arc-shaped bearing structure.

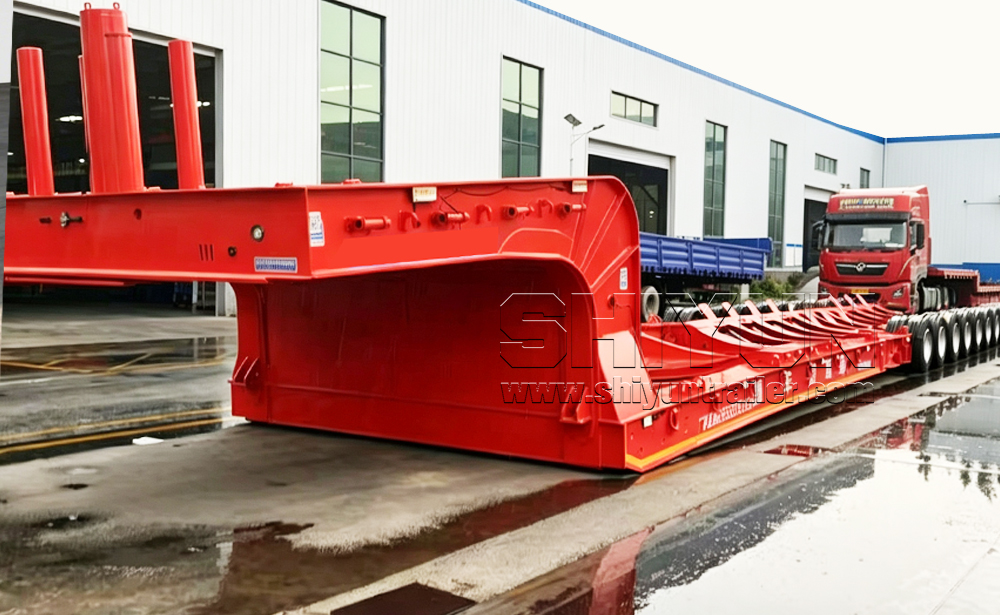

• Adopting a low-platform structure design, it is suitable for transporting large-diameter wind turbine towers. The ground clearance can be as low as 200~350 mm, which effectively reduces the overall transportation height and vehicle center of gravity, and avoids height limit risks on roads.

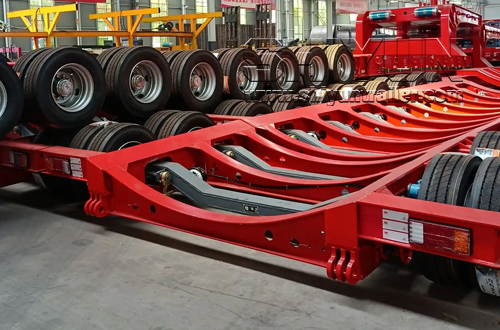

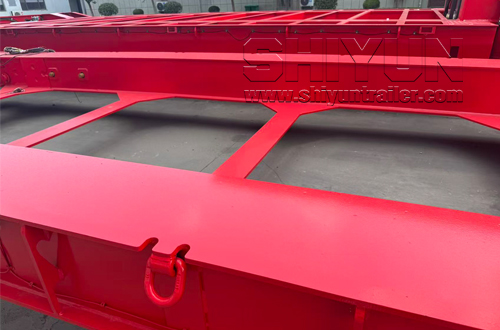

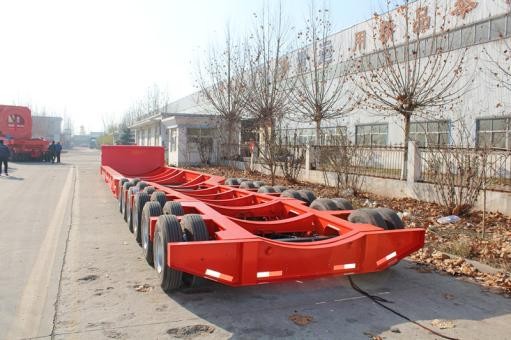

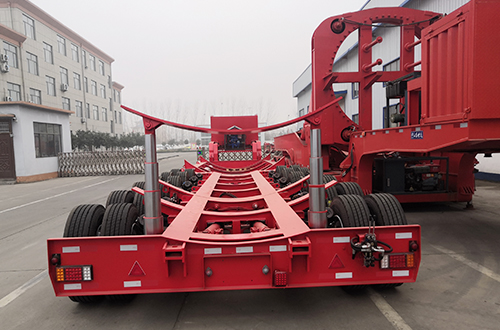

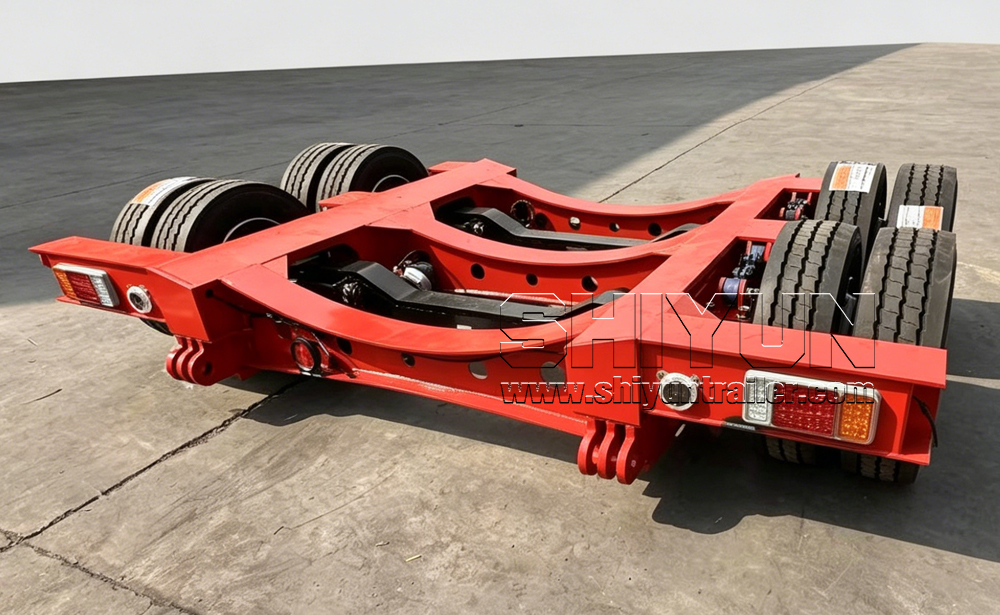

• Shiyun Adopted arched saddle and bracket design. The middle of the axle is concave and curved to closely fit the circular outer wall of the tower barrel. It prevents rolling and deformation of the tower, ensures firm binding and uniform stress distribution.

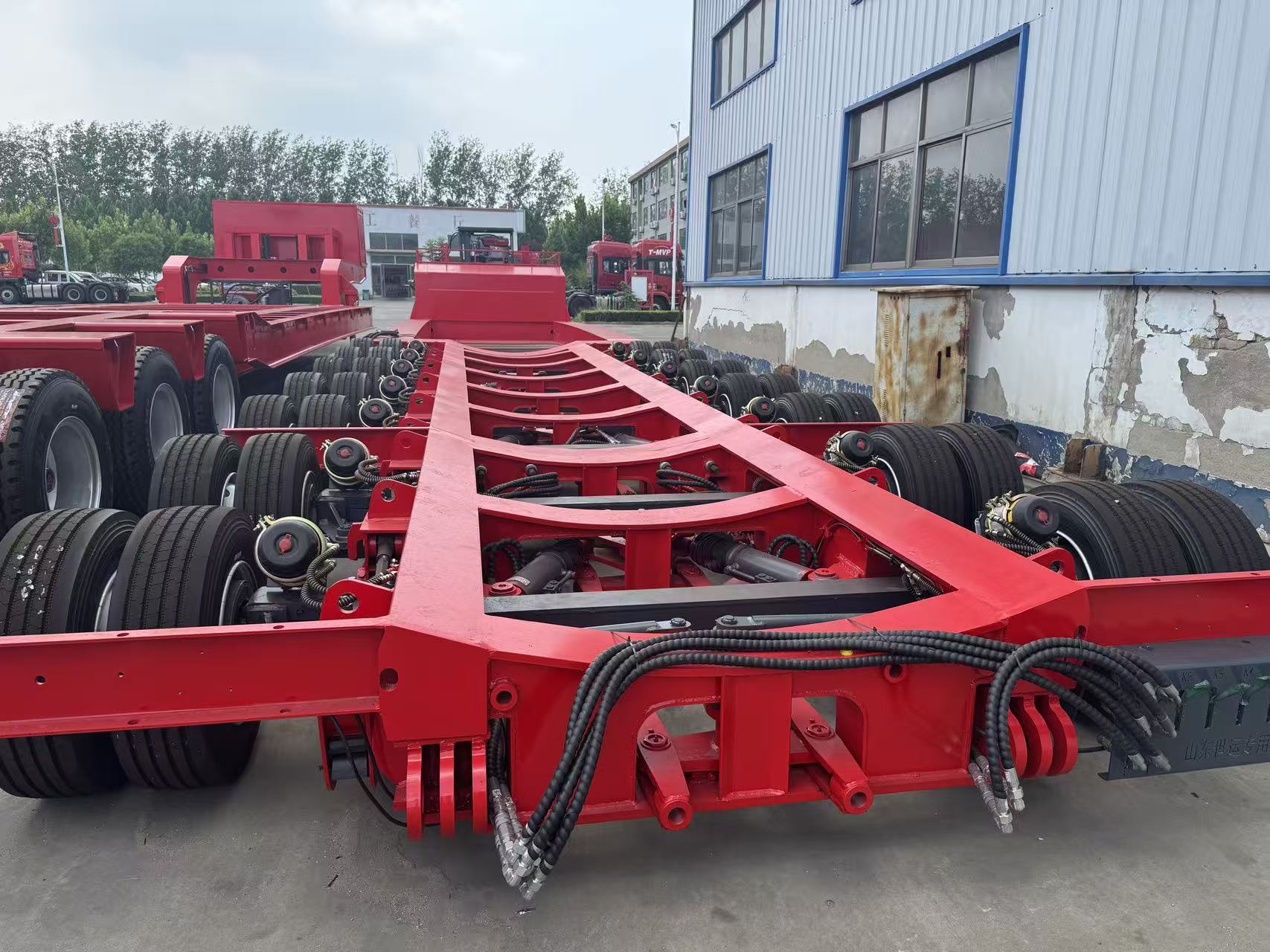

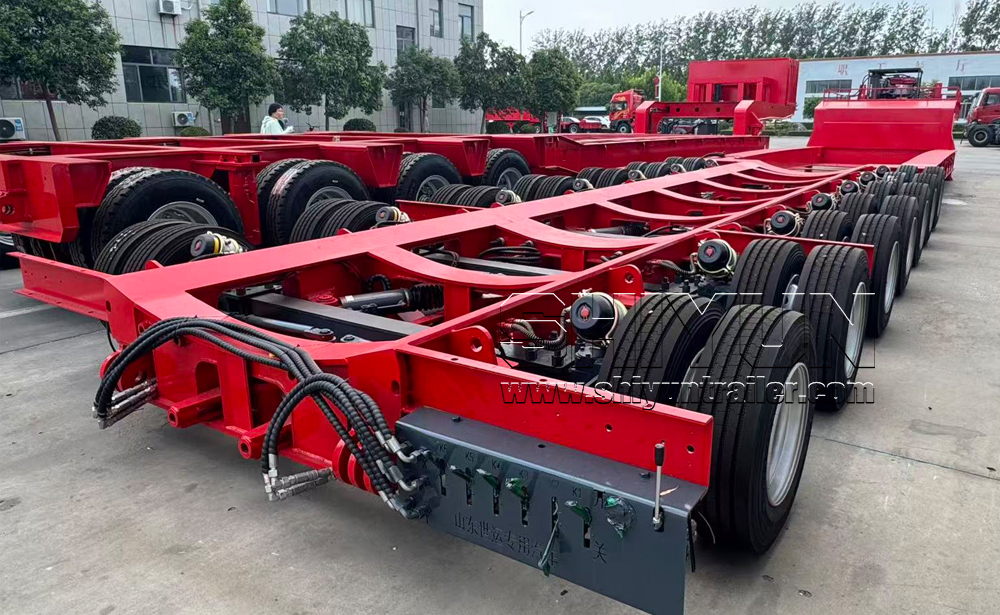

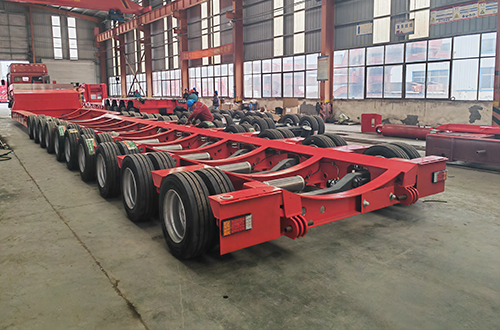

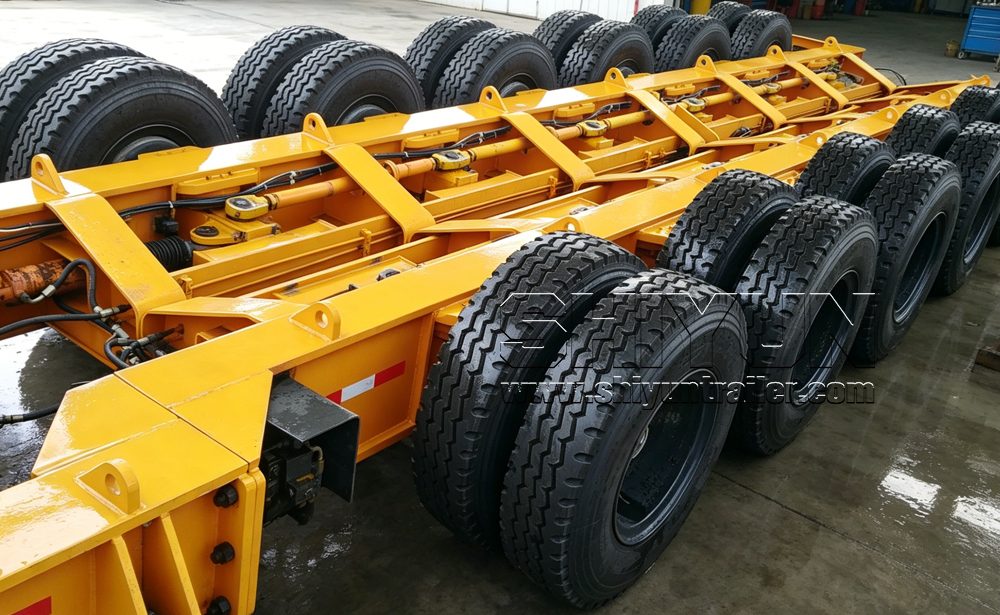

• The axle can be equipped with either concave-center axles or straight-beam through axles.It adopts multi-axle configuration with standard multi-axle hydraulic steering. Common specifications include 4-axle, 5-axle, 6-axle, 7-axle and 8-axle, and 9-axle or 10-axle models are also available. Ordinary fix axles or Hydraulic modular axle vehicles are optional as well, with a single vehicle load capacity ranging from 60 to 200 tons.The axles adopt a spliced and detachable structure. Independent axles can be freely disassembled, assembled and added or removed according to different load capacity requirements.

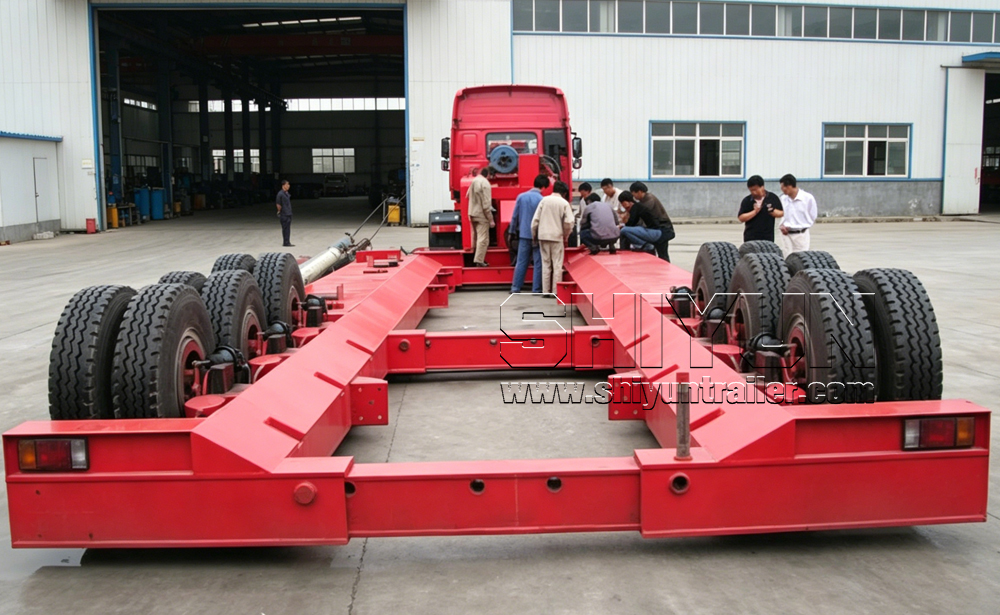

• The frame features a pull-out and extendable structure, enabling longitudinal stretching, telescopic extension and splicing lengthening, suitable for transporting wind turbine tower sections of 30~70 meters or even longer.The total length can reach 40 meters or more after telescopic extension.

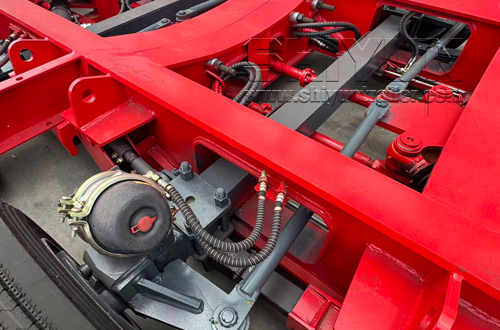

• SHIYUN extendable windmill vehicle can be fitted with a compact 12KW power station equipped with an engine and a hydraulic pump to drive the on-board hydraulic system for steering operation. Steering can be controlled either by manual valves or a remote control system.
• With load equalization and multi-support bearing design, it distributes hundred-ton class heavy loads evenly to multiple axles and wheels, complying with highway axle load regulations.

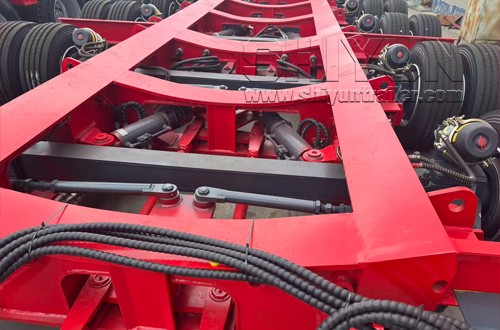

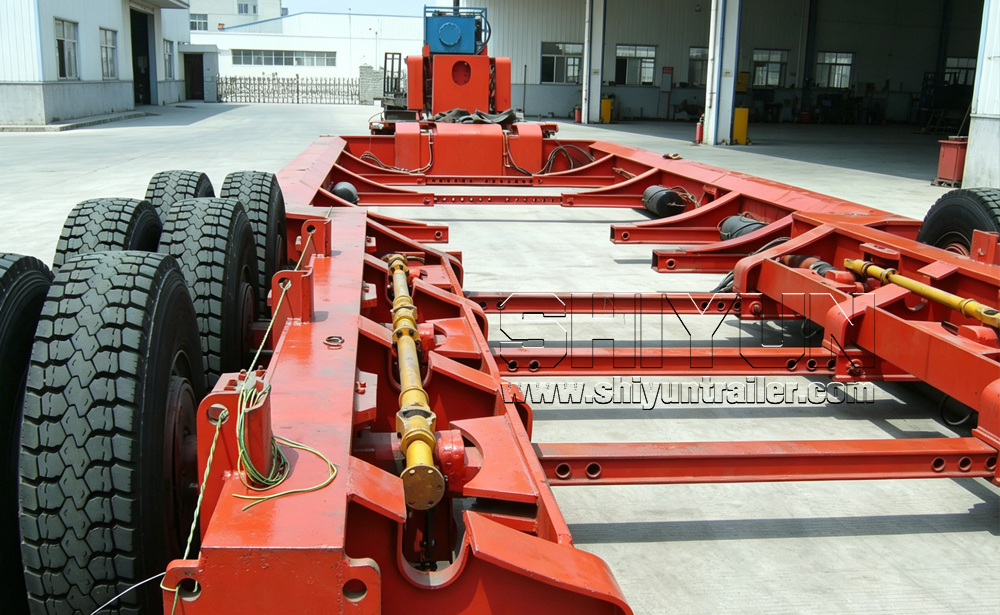

• All wheels adopt hydraulic steering. All steering axles are connected by transmission rods to realize synchronous steering. It features a small turning radius, enabling smooth passage on narrow roads, sharp curves and lane changes in mountainous areas.
• Equipped with a dedicated fastening system, combined with arc-shaped hoops, high-strength steel wire ropes and hydraulic tensioners, it firmly clamps the wind turbine tower to prevent slippage and overturning during transportation.

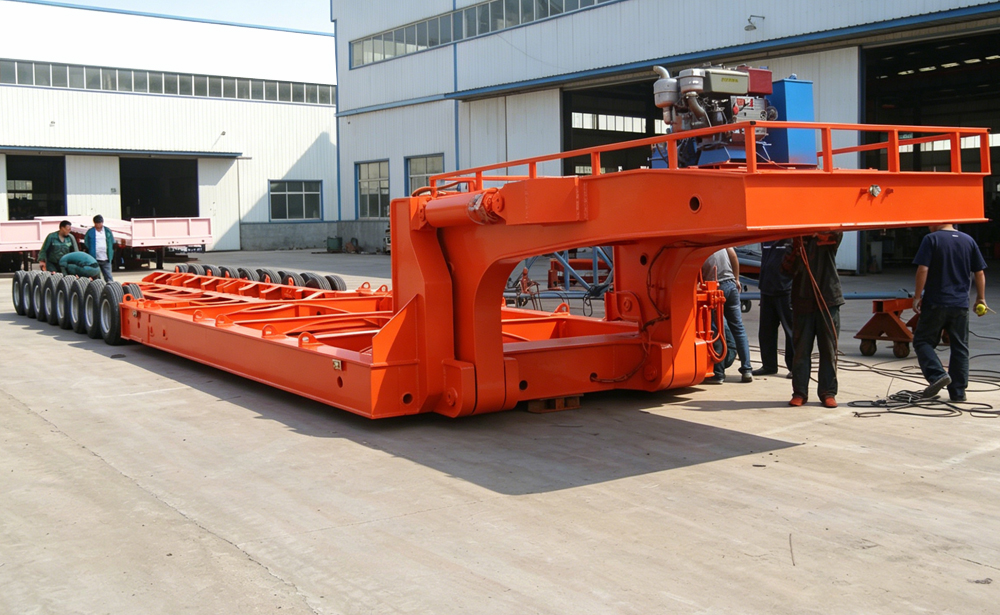

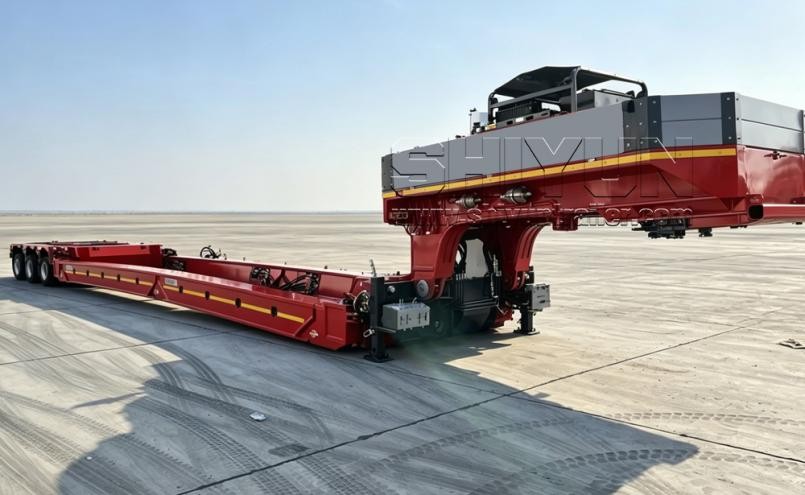

• The gooseneck is available in two options: fixed gooseneck, and fixed gooseneck with hydraulic lifting plate. For higher-end requirements, detachable gooseneck and hydraulic power gooseneck can be equipped, which adapt to different tractor heads and various loading & unloading heights.

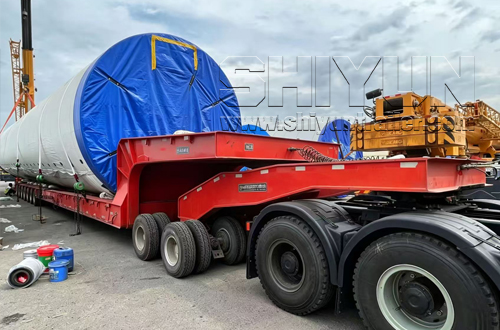

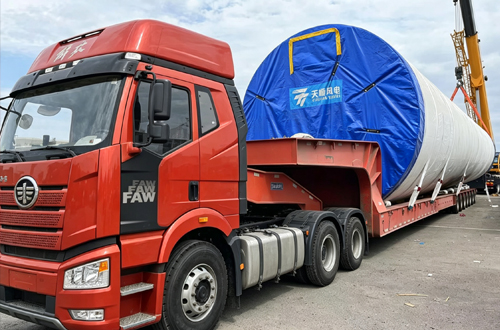

• If the load-bearing capacity of the tractor fifth wheel is insufficient, a dolly can be installed to increase the overall load capacity.

• It features a wide diameter adaptation range. Replaceable cushion blocks are fitted on the arc-shaped platform, The tower transport vehicle can be designed with a lateral telescopic and sliding structure, which is adaptable to different tower diameters and meets the requirement for diameter variation ranging from 3.5 meters to 6 meters.

• SHIYUN can also be manufactured with a width-slidable and middle hollow structure design, suitable for transporting wind turbine towers and large tank bodies.It is also applicable to shipping marine components and other tank-type cargoes. After the goods are placed on the ground, no hoisting equipment is required for unloading.

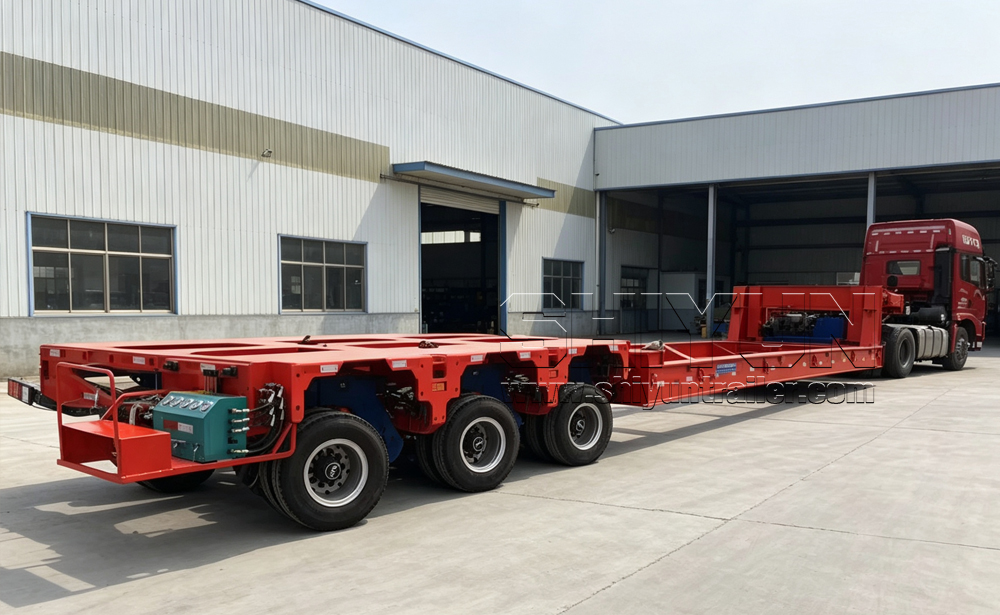

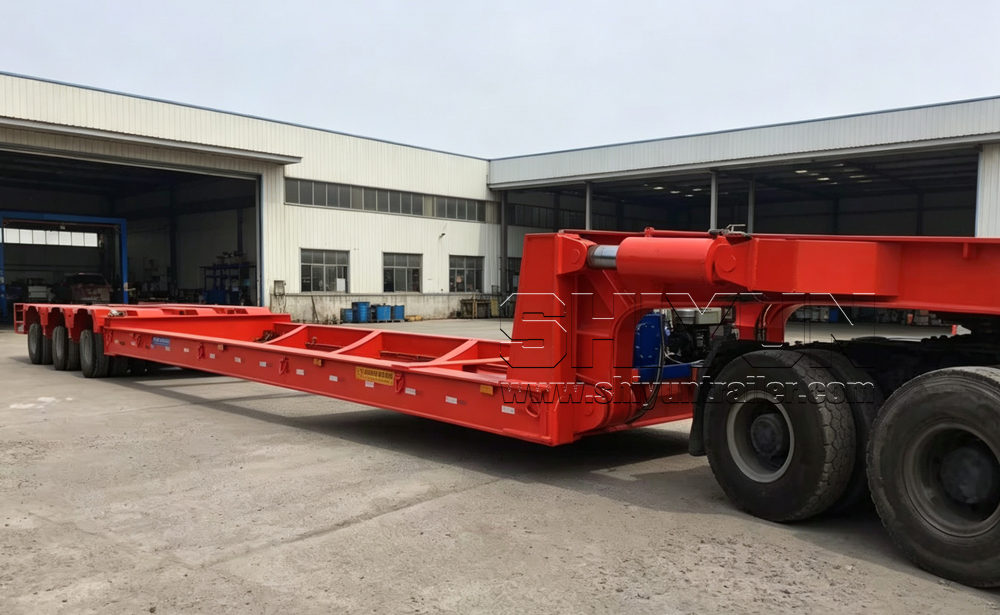

2. Hydraulic modular wind tower trailer for sale:

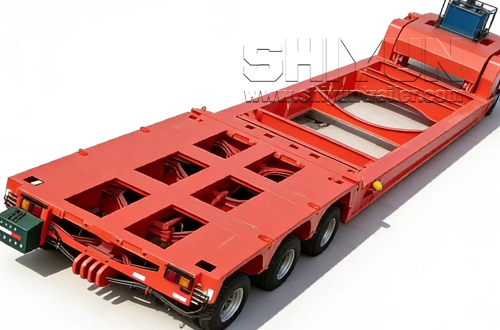

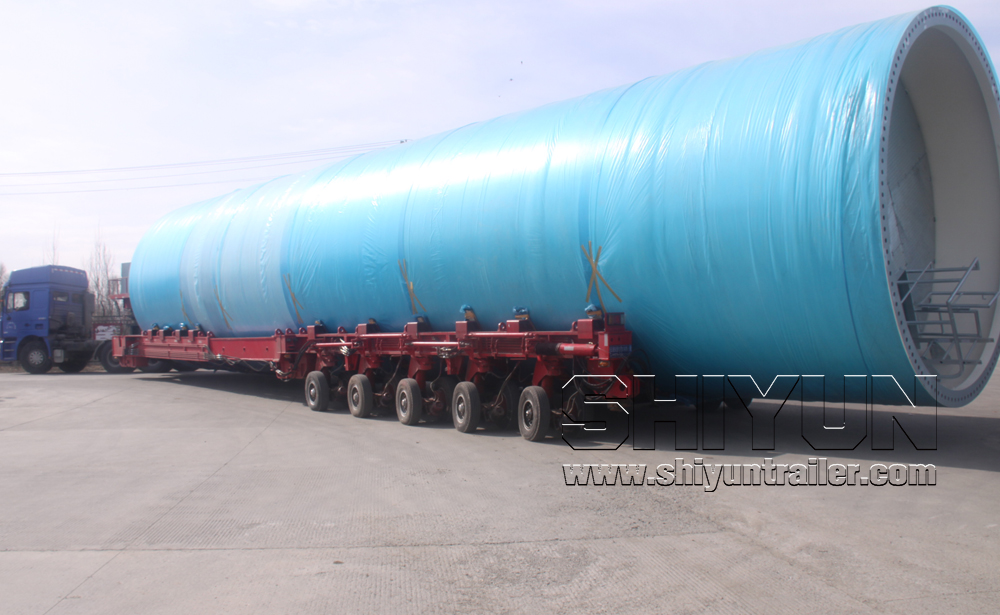

The Hydraulic modular axle transporters are an optimal choice for hauling oversized wind turbine tower segments. Boasting outstanding handling flexibility, they excel at moving tower sections that feature bulky dimensions, wide diameters and substantial weights.

Shandong SHIYUN VEHICLE also manufactures heavy-duty vessel bridge beams fully compatible with Goldhofer hydraulic modular trailers. These beams can seamlessly couple with heavy-haul equipment from other leading brands including Scheuerle and Nicolas. Developed to connect the front gooseneck assembly and rear axle groups, they also deliver sturdy load-bearing performance across the entire top deck surface.

Built around a hydraulic modular framework, this equipment offers far greater adaptability than traditional solid through-axle designs. It can be fitted with hydraulic axle-line suspension systems, enabling full vehicle hydraulic lifting and synchronized steering functions. Multiple rows of heavy-duty tires drastically boost the transporter’s overall payload capacity.

The vessel bridge beam is detachable and able to link up with various modular trailers to accomplish multi-purpose hauling tasks. Once detached from extendable spacer frames, the modular transporter can operate independently to carry other types of heavy cargo. Furthermore, if the destination country’s local transport rules impose no height limitations on oversize loads, wind tower sections may be placed directly onto the hydraulic modular axle vehicle for transit.

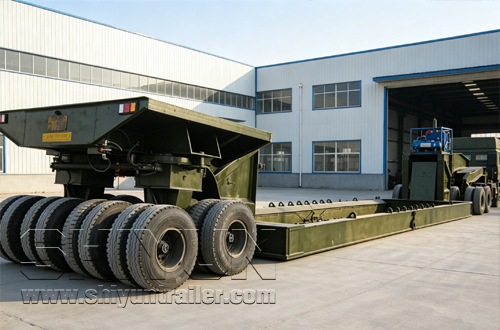

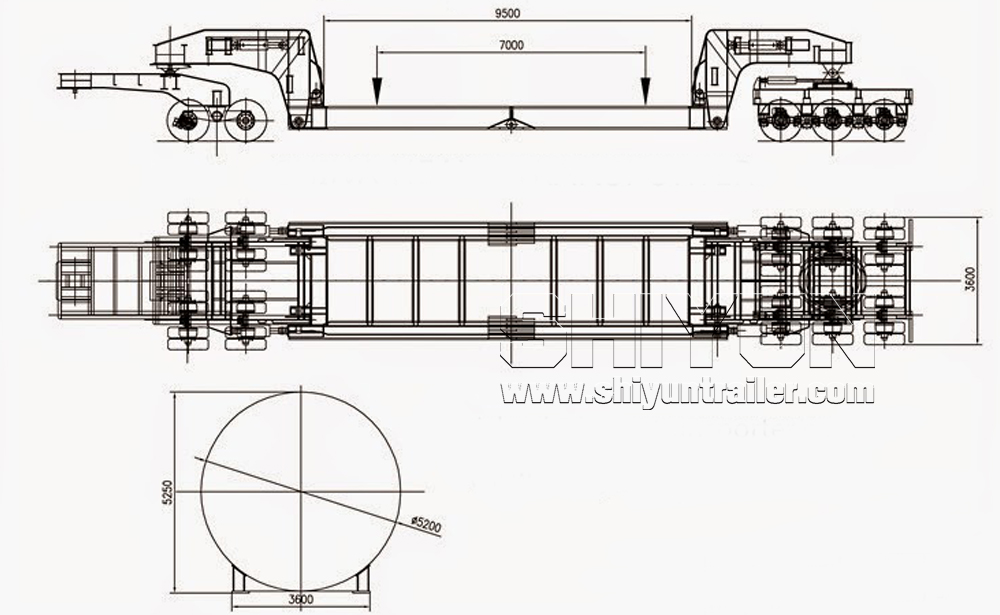

3.Heavy lift dolly for wind tower/Huge tank transporting:

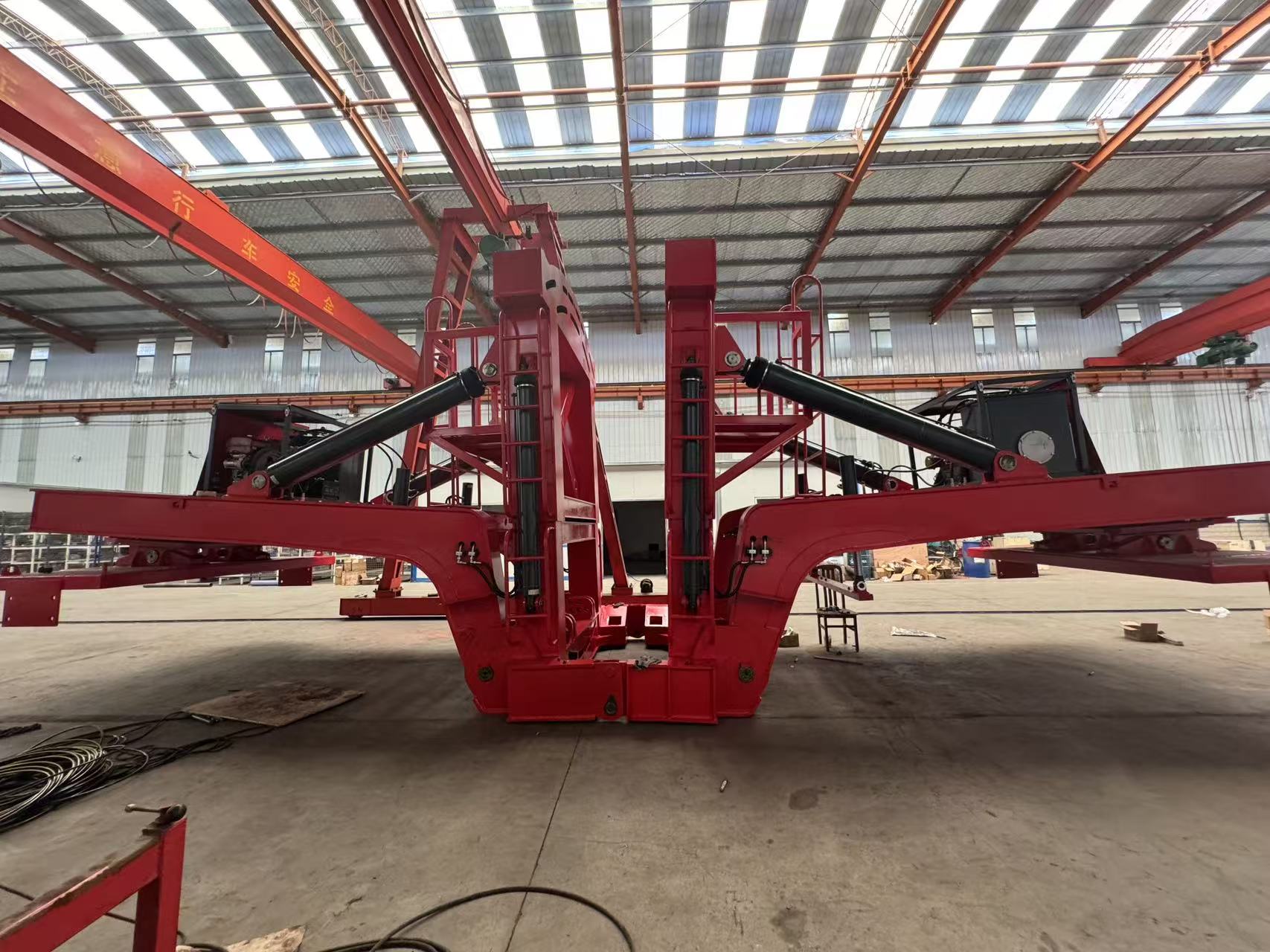

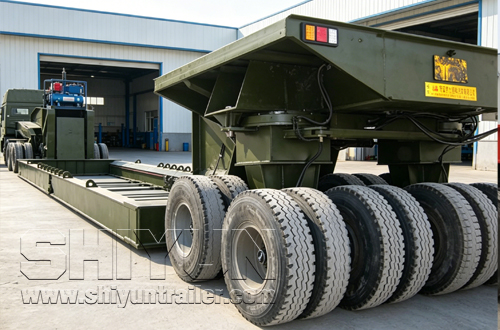

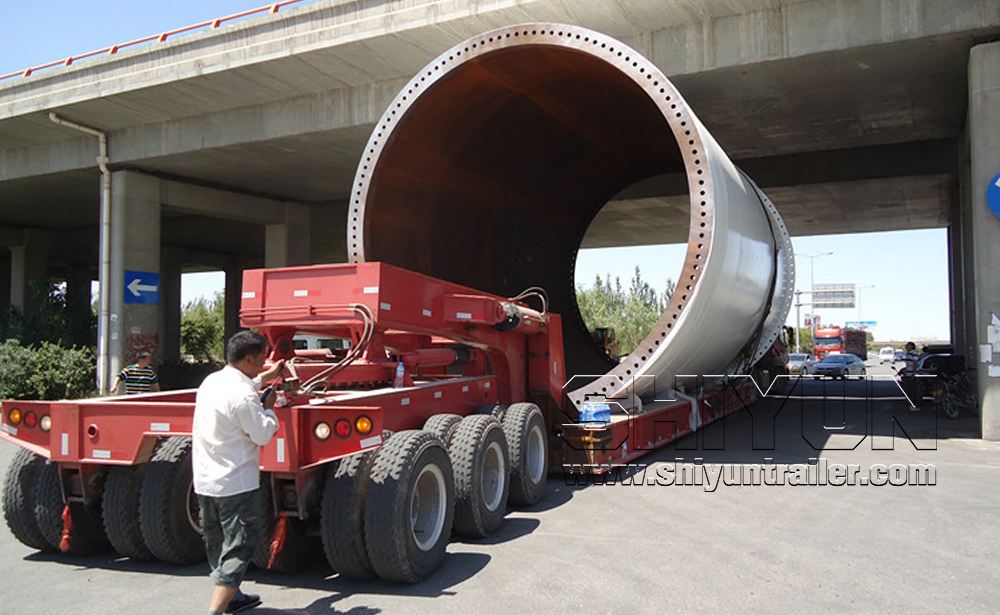

It can also adopt the front and rear load-bearing structure to carry the Vessel Bridge for transporting wind turbine towers and other Huge tanks.We called it Dolly heavy lift trailers.It is generally equipped with hydraulic modular axle or cantilever  axis lines, all fitted with hydraulic slewing turntables for steering .Load distributing beams are arranged on both sides of the Vessel Bridge, which are equipped with hydraulic lifting cylinders to realize the lifting of the entire cargo.

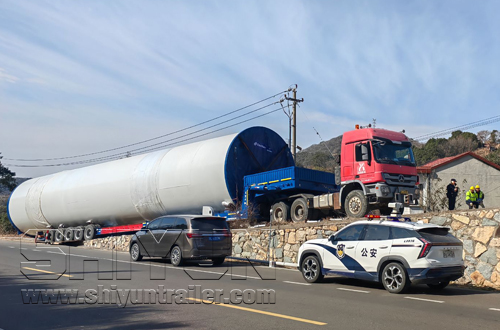

4. Successful cases:

Our clients have long been professionally engaged in cargo transportation for well-known domestic wind turbine blade brands, including Sinoma Blade, Times New Material, Titan Wind Energy, Aeolon Technology, Shuangyi Tech, Sinoma Lianzhong, AVIC Huiteng, Guangwei Composites, Goldwind, Mingyang Smart Energy, Sany Renewable Energy, Envision Energy and Dongfang Electric. With rich experience in oversized wind power equipment transportation, we provide efficient, safe and fully controllable logistics transportation services for major wind turbine blade manufacturers on a stable basis.

What do large-sized tank bodies generally include?

1. Wind power category: Wind turbine tower sections, segmented wind power cylinders, large pressure vessel cylinder sections
2. Chemical industrial tanks: Chemical storage tanks, reactor vessels, rectification tower cylinders, desulfurization and denitrification tower tanks
3. Storage and transportation tanks: Oil storage tanks, water storage tanks, cement tanks, fly ash tanks, heat-insulated asphalt tanks
4. Pressure vessel category: Boiler drums, high-pressure gas storage tanks, LNG cryogenic storage tanks, liquid ammonia and liquefied gas tank bodies
5. Environmental protection & municipal category: Large sewage treatment tanks, integrated purification tank bodies, large prefabricated septic tank vessels
6. Heavy industry equipment category: Pressure vessel shell rings, large equipment hollow cylinders, large steel cylinder components for bridges
